PVC and PU Conveyor Belt Jointing

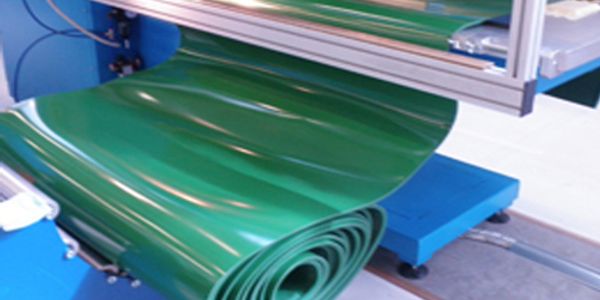

PVC Conveyor Belt Jointing
PVC Conveyor Belt Jointing
PVC Conveyor Belt Jointing
1) Scope of Procedure
This Procedure details the requirements for splicing and hot vulcanising of solid woven belt with PVC covers to make endless belts using finger-splicing method
PU Conveyor Belt Jointing
PVC Conveyor Belt Jointing
PVC Conveyor Belt Jointing
Belts delivered with no endless joints
- Open length belt : the belt is cut at a right angle of 90 °
- PPC/DS belt : the ends are prepared for a single finger on-site welding
- PPC/DS/DEC belt : the ends are prepared for an on-site welding with an overlap finger splice
- PPC/PE belt : the ends are prepared for an on-site welding with a step overlap
- PPC/PE/DIAG belt : the ends are prepared for an on-site welding with a diagonal overlap splice
Belts delivered with endless splices
- SF/DS belt : simple finger splice (straight through finger joint)
- SF/DS/DEC belt : finger overlap splice (finger over finger joint)
- SF/PE belt : step overlap splice
- SF/PE/DIAG belt : diagonal step overlap splice
Conveyor belts equipped with a fastener (metal laces)
- Plate Self Lock type fasteners (SL00, SL01 & SL02 types)
- Fasteners with rivets (Steel and stainless steel)
- Wire fasteners with round or flat wires
- Plastic fasteners, ideal for metal detectors
